Wavetek/Datron Multi-Product Calibrator
These instruments can produce or measure LETHAL VOLTAGES at their terminals. Test should only be performed by qualified technicians.

Caution: These instruments can produce or measure lethal voltages at their terminals. Testing should
only be performed by qualified technicians

View Error Codes
for this device
Error codeDefinition
Error Messages
Fatal System Errors
9000System Kernel Fault
9001Run Time System Error
9002Unexpected Exception
9003PROM Sumcheck Failure
9004RAM Check Failure
9005Serial Interface Fault
9006Option Test Failure
9007Unknown Engine Instruction
9099Undefined Fatal Error
Recoverable Errors
List of Execution Errors
1000EXE queue empty when recalled
1001Option not installed
1002Calibration disabled
1003Ratio/Function combination not allowed
1004Filter incompatible with Function
1005Input Zero not allowed in Ratio
1006Calibration not allowed in Ratio
1007Data entry error
1008Must be in AC Function
1009Pass Number entry error
1010Divide-by-zero not allowed
1012No more errors in list
1013Data out of limit
1014Illegal Range/Function combination
1015Command allowed only in Remote
1016Not in Special Calibration
1017Calibration not allowed with Math
1018Key not in the Cal Enabled position
1019Spec not compatible with Function
1020Internal Source Cal required
1021Test not allowed when Cal enabled
1022No parameter for this Function
1023Input zero not allowed in ACI
External Calibration Operations
Correction Errors
2000Zero Correction Error
2001Gain+ Correction Error
2002Gain- Correction Error
2003HF trim Correction Error
2004Input Correction Error
2005LoI Zero Correction Error
2006LoI Gain Correction Error
2008A to D Correction Error
2009Reference Error
2010Frequency Correction Error
2011DAC Correction Error
2012Standardise Error
Corruptions
2013Key/Pass# flags Corrupt
2014Serial Number Corrupt
2015Cal Due Date Corrupt
2016Self-corrections Flag Corrupt
2017Bus Address Corrupt
2018Line Frequency Corrupt
2020Measurement Corrections Corrupt
2021Measurement Corrections Invalid
2022NV RAM Write Failure
Non-volatile RAM Checksum Errors
2110Primary NV Checksum Error
2111Secondary NV Checksum Error
2112Input Zero NV Checksum Error
2113Frequency NV Checksum Error
Others
2114Switches not optimum
2115Requires internal source calibration
Self Calibration and Internal Source Calibration Operations
Reference Ratio Tests
2121 Reference zero noise.
2122 Reference zero magnitude.
2131 Ref 2 noise.
2132 Ref 2 magnitude.
2141 Ref 1 noise.
2142 Ref 1 magnitude.
2143 Ref 1 : Ref 2 Magnitude Ratio drift.
2151 Positive Reference noise.
2152 Positive Reference magnitude.
2153 Negative Reference noise.
2154 Negative Reference magnitude.
2155 Ref+ : Ref- Magnitude Ratio.
2156 Ref+ : Ref- Magnitude Ratio drift.
Fuse Tests
2101 Fuse is open circuit.
2102 Fuse fault other than o/c
Memory Tests
The following NV memory checksums
do not agree with their stored values.
2110 Primary.
2111 Secondary.
2112 Input Zero.
2113 Frequency.
DC Voltage Tests
True Zero Measurements
2161 DC 10V range zero noise.
2162 DC 10V range zero magnitude.
2163 DC 10V range zero drift.
2171 DC 1V range zero noise.
2172 DC 1V range zero magnitude.
2173 DC 1V range zero drift.
2181DC 100mV range zero noise.
2182DC 100mV range zero magnitude.
2183DC 100mV range zero drift.
2191 DC 100V range zero noise.
2192 DC 100V range zero magnitude.
2193 DC 100V range zero drift.
2201 DC 1000V range zero noise.
2202 DC 1000V range zero magnitude.
2203 DC 1000V range zero drift.
Negative Gain Measurements
(Offsets {Zero} and References)
22111V offset noise.
22121V offset magnitude.
22131V reference noise.
22141V reference magnitude.
221510V offset noise.
221610V offset magnitude.
Positive Gain Measurements
(Offsets {Zero} and References)
2221 10V offset noise.
2222 10V offset magnitude.
2223 10V loaded offset noise.
2224 10V loaded offset magnitude.
22311V offset noise (atten. 10V).
2232 1V offset magnitude (atten. 10V).
2233 100mV offset noise (atten. 10V).
2234 100mV offset magnitude (atten. 10V).
2241 1V offset noise.
2242 1V offset magnitude.
2251 10V +Ref noise.
2252 10V +Ref magnitude.
2253 10V +Ref magnitude drift.
2261 10V loaded gain noise.
226210V loaded gain magnitude.
226310V loaded gain magnitude drift.
2271 1V Range100mV signal noise.
2272 1V Range100mV signal magnitude.
2273 1V Range100mV signal magnitude drift.
2281 100mV Range100mV signal noise.
2282 100mV Range100mV signal magnitude.
2283 100mV Range100mV signal magnitude drift.
2291 1V reference noise.
2292 1V reference magnitude.
2293 1V reference drift.
AC Voltage Tests
1V AC Range Selected
2301 1VAC Input noise.
2302 1VAC Input magnitude.
23111VAC preamp output noise.
23121VAC preamp output magnitude.
2321+RMS output noise.
2322+RMS output magnitude.
100mV AC Range Selected
2331 100mVAC Input noise.
2332 100mVAC Input magnitude.
2341100mVAC preamp output noise.
2342100mVAC preamp output magnitude.
10V AC Range Selected
2351 10VAC Input noise.
2352 10VAC Input magnitude.
2361 10VAC preamp output noise.
2362 10VAC preamp output magnitude.
100V AC Range Selected
2371 100VAC Input noise.
2372 100VAC Input magnitude.
2381 100VAC preamp output noise.
2382 100VAC preamp output magnitude.
1kV AC Range Selected
2391 1kVAC Input noise.
2392 1kVAC Input magnitude.
2401 1kVAC preamp output noise.
2402 1kVAC preamp output magnitude.
1V AC Range Selected
2411 1VAC Input noise.
2412 1VAC Input magnitude.
24211VAC preamp output noise.
24221VAC preamp output magnitude.
2431RMS output noise.
2432RMS output magnitude.
2433 1V offset magnitude.
2434 1V preamp gain drift.
2435 +RMS gain.
2436 +RMS gain drift.
2437RMS gain.
2438RMS gain drift.
100mV AC Range Selected
2441 100mVAC Input noise.
2442100mVAC Input magnitude.
2451 100mVAC preamp output noise.
2452 100mVAC preamp output magnitude.
2453 100mV preamp gain drift.
10V AC Range Selected
2461 10VAC Input noise.
2462 10VAC Input magnitude.
247110VAC preamp output noise.
247210VAC preamp output magnitude.
2473 10V preamp gain drift.
100V AC Range Selected
2481 100VAC Input noise.
2482 100VAC Input magnitude.
2491100VAC preamp output noise.
2492100VAC preamp output magnitude.
2493 100V preamp gain drift.
1kV AC Range Selected
2501 1kVAC Input noise.
2502 1kVAC Input magnitude.
25111kVAC preamp output noise.
25121kVAC preamp output magnitude.
2513 1kV preamp drift.
DC Current Tests
10mA DC Range Selected
2521 10mA range zero noise.
2522 10mA range zero magnitude.
2523 10mA range zero magnitude drift.
2524 10mA range zero offset drift.
2525 10mA range zero offset magnitude drift.
253110mA range gain noise.
253210mA range gain magnitude.
2533 10mA range gain drift.
100mA DC Range Selected
2541 100mA range zero noise.
2542 100mA range zero magnitude.
2543 100mA range zero drift.
2551100mA range gain noise.
2552100mA range gain magnitude.
2553 100mA range gain drift.
1A DC Range Selected
2561 1A range zero noise.
2562 1A range zero magnitude.
2563 1A range zero drift.
25711A range gain noise.
25721A range gain magnitude.
2573 1A range gain drift.
1mA DC Range Selected
2581 1mA range zero noise.
2582 1mA range zero magnitude.
2583 1mA range zero drift.
25911mA range gain noise.
25921mA range gain magnitude.
2593 1mA range gain drift.
100uA DC Range Selected
2601 100uA range zero noise.
2602 100uA range zero magnitude.
2603 100uA range zero drift.
2611100uA range gain noise.
2612100uA range gain magnitude.
2613 100uA range gain drift.
AC Current Tests
10mA AC Range Selected
2621 10mA range gain noise (10mA Input).
2622 10mA range gain magnitude (10mA Input).
2631 100mA range gain noise (100mA Input).
2632 100mA range gain magnitude (100mA Input).
Resistor Ratio Tests
1k Standard Resistor Tests
True Zero
2721 1k resistor true zero noise.
2722 1k resistor true zero magnitude.
2723 1k resistor true zero drift.
Normal measurement
2724 1k resistor gain noise.
2725 1k Ohm resistor gain magnitude.
2726 1k Ohm resistor gain drift.
100k Ohm Standard Resistor Tests
True Zero
2731 100k Ohm resistor true zero noise.
2732 100k Ohm resistor true zero magnitude.
2733 100k Ohm resistor true zero drift.
Normal measurement
2734 100k Ohm resistor gain noise.
2735 100k Ohm resistor gain magnitude.
2736 100k Ohm resistor gain drift.
Standard Resistors Ratio
Ratio Drift Calculation
2737 Standard resistor ratio drift.
Normal and LOI Ohms Ranges Tests
100k Ohm Range Selected
2811 100k Ohm range low-current true zero noise.
2812 100k Ohm range low-current zero magnitude.
2813 100k Ohm range low-current zero drift.
2821100k Ohm range low-current gain noise.
2822100k Ohm range low-current gain magnitude.
2823 100k Ohm range low-current gain drift.
1M Ohm Range Selected
2831 1M Ohm range high-current true zero noise.
2832 1M Ohm range high-current zero magnitude.
2833 1M Ohm range high-current zero drift.
2841 1M Ohm range high-current gain offset noise.
2842 1M Ohm range high-current offset magnitude.
28431M Ohm range high-current gain noise.
28441M Ohm range high-current gain magnitude.
2845 1M Ohm range high-current gain drift.
2851 1M Ohm range low-current true zero noise.
2852 1M Ohm range low-current zero magnitude.
2853 1M Ohm range low-current zero drift.
2861 1M Ohm range low-current gain noise.
2862 1M Ohm range low-current gain magnitude.
2863 1M Ohm range low-current gain drift.
100 Ohm Range Selected
2741 100 Ohm range high-current true zero noise.
2742 100 Ohm range high-current zero magnitude.
2743 100 Ohm range high-current zero drift.
2751100 Ohm range high-current gain offset noise.
2752100 Ohm range high-current offset magnitude.
2753100 Ohm range high-current gain noise.
2754100 Ohm range high-current gain magnitude.
2755 100 range high-current gain drift.
2761 100 Ohm range low-current true zero noise.
2762 100 Ohm range low-current zero magnitude.
2763 100 Ohm range low-current zero drift.
1k Ohm Range Selected
2771 1k range high-current true zero noise.
2772 1k range high-current zero magnitude.
2773 1k range high-current zero drift.
27811k range high-current gain noise.
27821k range high-current gain magnitude.
2783 1k range high-current gain drift.
10k Range Selected
2791 10k range high-current true zero noise.
2792 10k range high-current zero magnitude.
2793 10k range high-current zero drift.
2801 10k range low-current true zero noise.
2802 10k range low-current zero magnitude.
2803 10k range low-current zero drift.
Hi Ohms Ranges Tests
10M Range Selected
2871 10M range high-current true zero noise.
2872 10M range high-current zero magnitude.
2873 10M range high-current zero drift.
2881 10M range low-current true zero noise.
2882 10M range low-current zero magnitude.
2883 10M range low-current zero drift.
2891 10M range low-current gain noise.
2892 10M range low-current gain magnitude.
2893 10M range low-current gain drift.
100M Range Selected
2901 100M range true zero noise.
2902 100M range zero magnitude.
2903 100M range zero drift.
1G Range Selected
2911 1G range true zero noise.
2912 1G range zero magnitude.
2913 1G range zero drift.

Wavetek/Datron 1271 8½ Digit Digital Multimeter

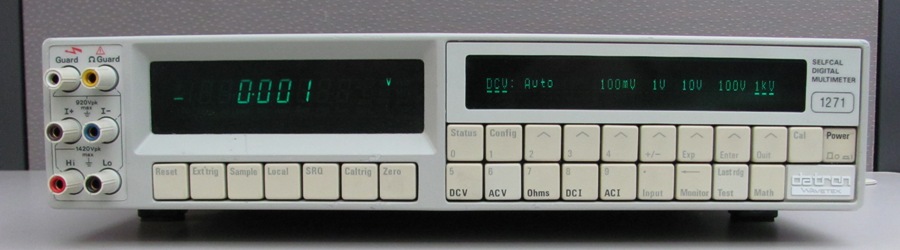

The 1271 from Wavetek/Datron is a high performance, 8½ digit bench top multimeter. It can measure direct voltage and current, alternating voltage and current, and resistance. A rear input option is available for ratiometric measurements on voltage and resistance functions.

Common Failures

  • Misapplication of voltage or current — The 1271 can be damaged by sourcing high voltage into resistance or current functions.
  • Age — Very old instruments can suffer from age related failures caused by normal deterioration of components and assemblies over time.

Test Instructions

These instruments can produce or measure lethal voltages at their terminals. Testing should only be performed by qualified technicians.

Any failure or operational deficiency information available allows us to provide the best service. Please include any information available about failures and what function the instrument was in prior to failure.

Testing Steps

  • If the instrument is smoking or has a bad smell coming from it turn it off immediately and contact us for further instruction.
  • Power up the 1271 and let it warm up for 30 minutes. Run the fast test from the test button menu. If a failure occurs, note the error number/description and contact us. There are often multiple errors. Report as many as you reasonably can.
  • If the fast test passes, next run the full test from the test button menu. If a failure occurs, note the error number/description and contact us. There are often multiple errors. Report as many as you reasonably can.
  • For any functional or calibration errors not detected by the test operations, contact us for repair.
Call us at: 254-687-9700
© COPYRIGHT 2024   Privacy and Terms
