Caution: These instruments can produce or measure lethal voltages at their terminals. Testing should
only be performed by qualified technicians
|201||5725 Self-Test ROM Failure Requires service|
|202||5725 Self-Test RAM Failure Requires service|
|203||5725 Self-Test EEPROM Failure Requires service|
|204||5725 Self-Test Data Bus Failure Requires service|
|205||5725 Self-Test CLAMPS Circuit Failure Requires service|
|206||5725 Self-Test HVCLR Circuit Failure Requires service|
|207||5725 Self-Test DAC Failure Requires service|
|208||5725 Self-Test Watchdog Timer Failure Requires service|
|209||5725 Current Heatsink Too Hot Requires service|
|210||Output Tripped To Standby Current heat sink too hot in operate|
|211||5725 Current Compliance Voltage Too High Internal fault, requires service|
|212||5725 Current Compliance Voltage Too High Most likely an external fault|
|213||5725 +400V Supply Did Not Shut Off Requires service|
|214||5725 -400V Supply Did Not Shut Off Requires service|
|215||5725 Voltage Heatsink Too Hot Requires service|
|216||5725 Voltage Heatsink Too Hot Voltage heat sink too hot in operate|
|217||5725 +400V Supply Too Small Requires service, or improper line voltage selected|
|218||5725 +400V Supply Too Large Requires service, or improper line voltage selected|
|219||5725 -400V Supply Too Large Requires service, or improper line voltage selected|
|220||5725 -400V Supply Too Small Requires service, or improper line voltage selected|
|221||5725 +400V Supply Current Too High Internal fault, requires service|
|222||Output Tripped To Standby +400V supply too high in operate, most likely an external fault|
|223||5725 -400V Supply Current Too High Internal fault, requires service|
|224||Output Tripped To Standby -400V supply magnitude too high in operate, most likely an external fault|
|225||5725 Fan Not Working Requires service|
|226||5725 CLAMPS Fault Internal fault, requires service|
|227||Output Tripped To Standby CLAMPS circuit activated most likely because of external transient condition|
|228||5725 Software TRAP|
|229||5725 Cable Was Off|
|230||5725 RESET (power-up or watchdog timer)|
|231||5725 Guard-Crossing Timeout|
|232||5725 Illegal/Unexecutable Command|
|233||5725 Non-Maskable Interrupt Occurred Either internal fault or external transient condition|
|234||5725 HVCLEAR Circuit Activated Internal fault, requires service|
|235||Output Tripped to Standby HVCLEAR circuit activated most likely because of external transient condition|
|841||No 5725 Available For Selected Output|
|850||Can’t Store, 5725 Switch In NORMAL|
|851||Can’t Format, 5725 Switch In NORMAL|
|3202||5725 ACV Sense Amp Fault Requires service|
|3203||5725 ACV Standby 5725 Fault Requires service|
|3204||5725 ACV Operate Wouldn’t Converge Requires service|
|3205||5725 ACV Operate 5725 Fault Requires service|
|3206||5725 ACV Cal Sensor Test Died Requires service|
|3207||5725 ACV Cal Sensor Fault Requires service|
|3208||5725 Current Path To Shunt Open Requires service|
|3209||5725 Shunt Sense Open Requires service|
|3210||5725 Shunt Measurement Out Of Tolerance Requires service|
|3211||5725 Current Amplifier Offset Too Large Requires service|
|3212||5725 Current Drive Path Open Requires service|
|3213||5725 Current Error Amplifier Failure Requires service|

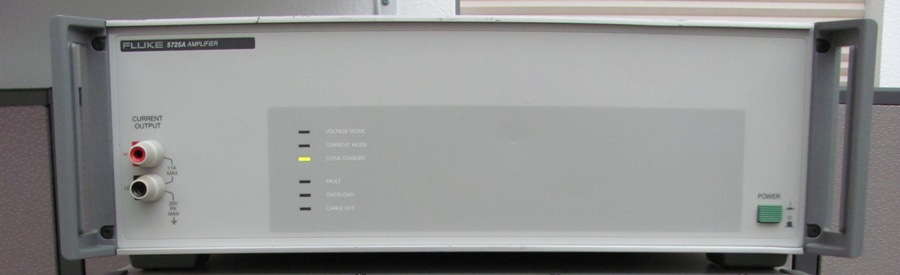

Fluke 5725A Amplifier
The 5725A from Fluke is a bench top amplifier for the 5700A and 5720A. It extends the 1000V range alternating voltage function up to 100 kHz and the direct and alternating current functions up to 11 Amps.
- Poor Maintenance — Over time or in dusty working environments dust and debris can build up on the filter and inside the unit. This can increase internal operation temperatures affecting reliability. It can also create leakage paths that affect calibration stability and operation accuracy. In the worst cases stray leakage caused by dust in the 5725A can cause uncontrolled high voltage conduction within the instrument resulting in and significant damage.
- Age — Very old instruments can suffer from age related failures caused by normal deterioration of components and assemblies over time.
- Mechanical damage — The 5725A contains several large transformers and is very heavy. Dropping or other impact damage from transport and shipping is not uncommon.
These instruments can produce or measure lethal voltages at their terminals. Testing should only be performed by qualified technicians.
Any failure or operational deficiency information available allows us to provide the best service. Please include any information available about failures and what function the instrument was in prior to failure.
* The 5725A can only be tested when connected to a 5700A or 5720A calibrator.
- If the instrument is smoking or has a bad smell coming from it turn it off immediately and contact us for further instruction.
- Power up the 5700A and 5725A. Run 5725A instrument self diag from the utilities menu. If a failure occurs, note the error number/description and contact us. There are often multiple errors. Report as many as you reasonably can.
- If self tests pass, run cal zero from the calibration menu. If a failure occurs again note the error number/description and contact us.
- If zero cal passes, run cal check from the calibration menu. If a failure occurs again note the error number/description and contact us. If the unit has been calibrated within the last two calendar years and there is a large calibration shift reported, this can be considered a failure as well.
- For any functional or calibration errors not detected by the self test and cal operations, contact us for repair.
